Free Fusion 360 CAM File: CNC Milling Test Arm Lever (Philipps)
Original title: FUSION 360 CNC - Testarm
Overview

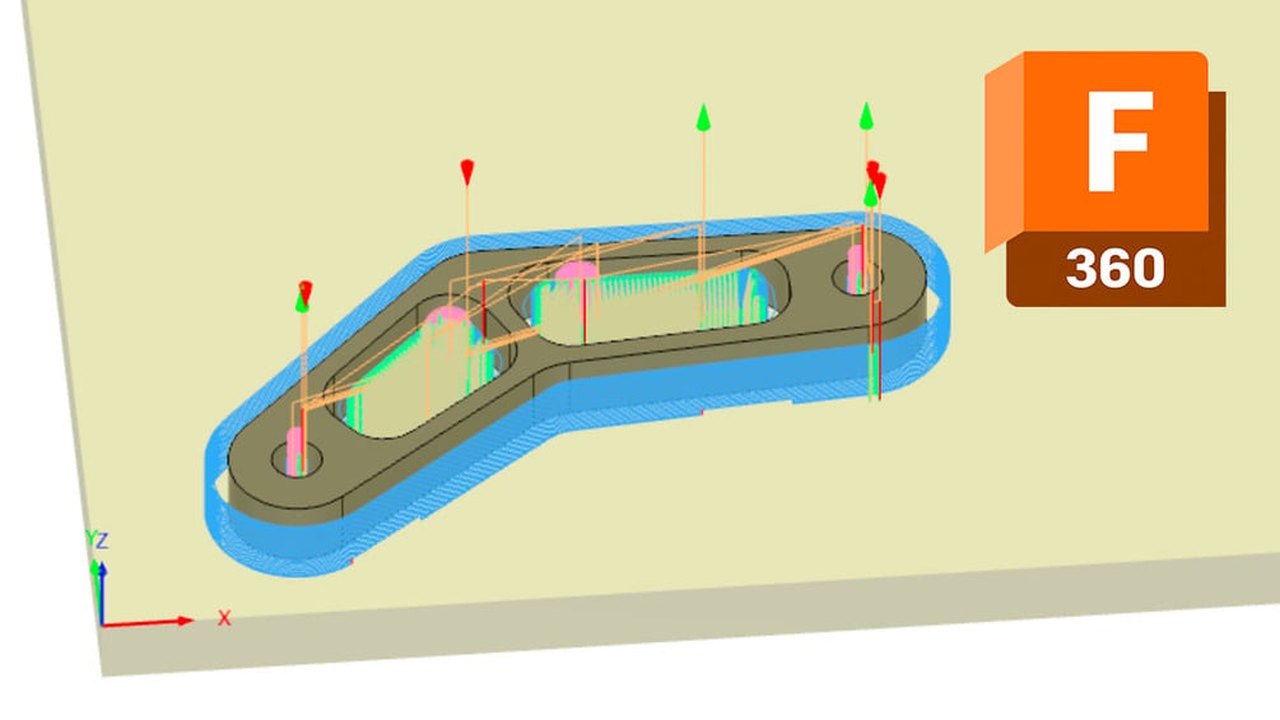

FUSION 360 CNC - Testarm is the 'test arm' lever part used in a German-language tutorial by Philipps on designing a lever (Hebel) in Autodesk Fusion 360 and programming it for CNC milling. Once imported into Fusion 360, the file lets you study both the lever model and the CAM setup used to program it for machining, a compact example of a design-to-CNC workflow.
The Fusion 360 source file (about 920 KB, extension not stated on the page) is offered on Gumroad as a pay-what-you-want download from €0, with an email address required. Useful for hobby machinists who want to study a CAM setup instead of building one from scratch.
What You Can Learn
- CAM setup for CNC milling a lever part in Fusion 360
- Studying the model and its CAM setup together after importing the file
Access: Free (email signup)
